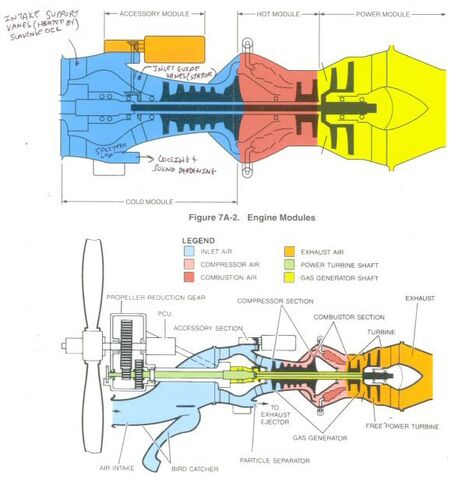

CT7 Turboprop Engine sectional flow diagram. This illustrates the "free turbine" concept. The compressor section and first 2 power turbines are not connected to the last 2 of the 4 power turbines. Therefore, the 2 last power turbines turn independantly of the rest of the engine. The propeller (prop gear box) is connected to the last 2 power turbines by the solid central shaft.
